MA-AC-GL1008 | Industrial Switch 8-port Gigabit DIN

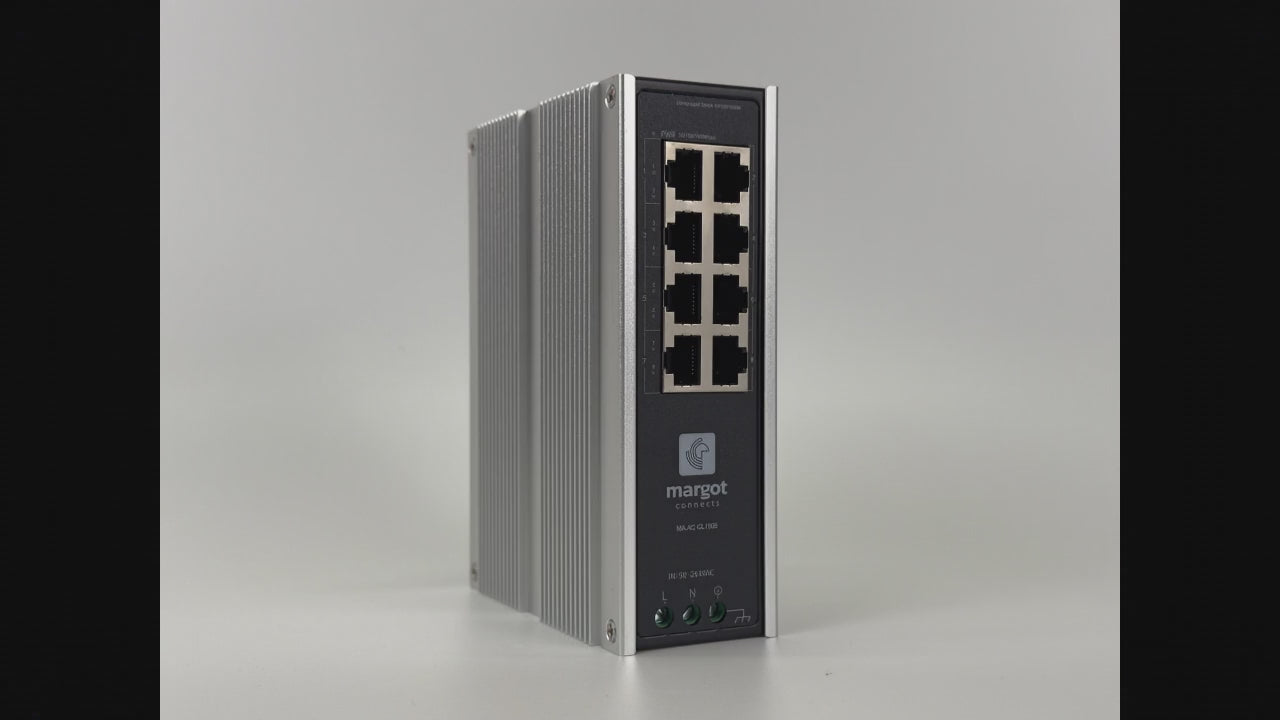

Industrial Gigabit Switch MA-AC-GL1008

The MA-AC-GL1008 industrial switch is a reliable solution for applications in extreme environmental conditions. It features a robust aluminum housing with IP40 protection, which ensures excellent heat dissipation, stability and durability.

Key Features:

• Ports : 8 RJ45 ports with speeds of 10/100/1000 Mbps.
• Operating temperature range : -40°C to 70°C, ideal for harsh environments.
• Power : Total power 15W, support for AC power supply (90~264V).
• Mounting : Standard DIN rail, quick and easy mounting.

Efficiency:

• Bandwidth: 16 Gbps.
• Network latency: minimum ranging from 10 Mbps to 1000 Mbps.
• MAC address table: up to 8K addresses.
• Data transfer speed: up to 1488000 pps (for 1000 Mbps ports).

Network standards:

• IEEE 802.3i 10BASE-T
• IEEE 802.3u 100BASE-TX
• IEEE 802.3ab 1000BASE-T
• IEEE 802.3x Flow Control

Physical specifications:

• Dimensions: 145mm x 110mm x 51mm.
• Weight: 0.73 kg.
• Cooling mode: fanless, ensuring quiet and failure-free operation.

Certificates:

• CE Mark
• FCC Part15, Class B
• RoHS 2.0

Guarantee:

2-year device warranty.

The MA-AC-GL1008 is the ideal choice for industrial networking systems, offering reliability, performance, and ease of installation. With its design and advanced features, it is suitable for both commercial and industrial applications.
