MA-AC-F81226 | Industrial Switch 26-port PoE Gigabit DIN

The MA-AC-F81226 industrial switch is a high-class network device that provides reliability, performance and resistance to extreme conditions. Thanks to its solid aluminum housing with IP40 protection and a fan cooling system, it offers stable and long-lasting operation.

Key Features:

• RJ45 ports : 16 10/100/1000 Mbps ports.
• PoE Ports : 8 RJ45 PoE ports (10/100/1000 Mbps), including 2 high-power ports (up to 60 W).
• SFP ports : 2 SFP ports (10/100/1000 Mbps).
• Operating temperature range : From -40°C to 70°C, making it an ideal solution for demanding industrial environments.
• Power : Total power 130W, support triple backup power supply (AC 90-264V, DC 48-52V).

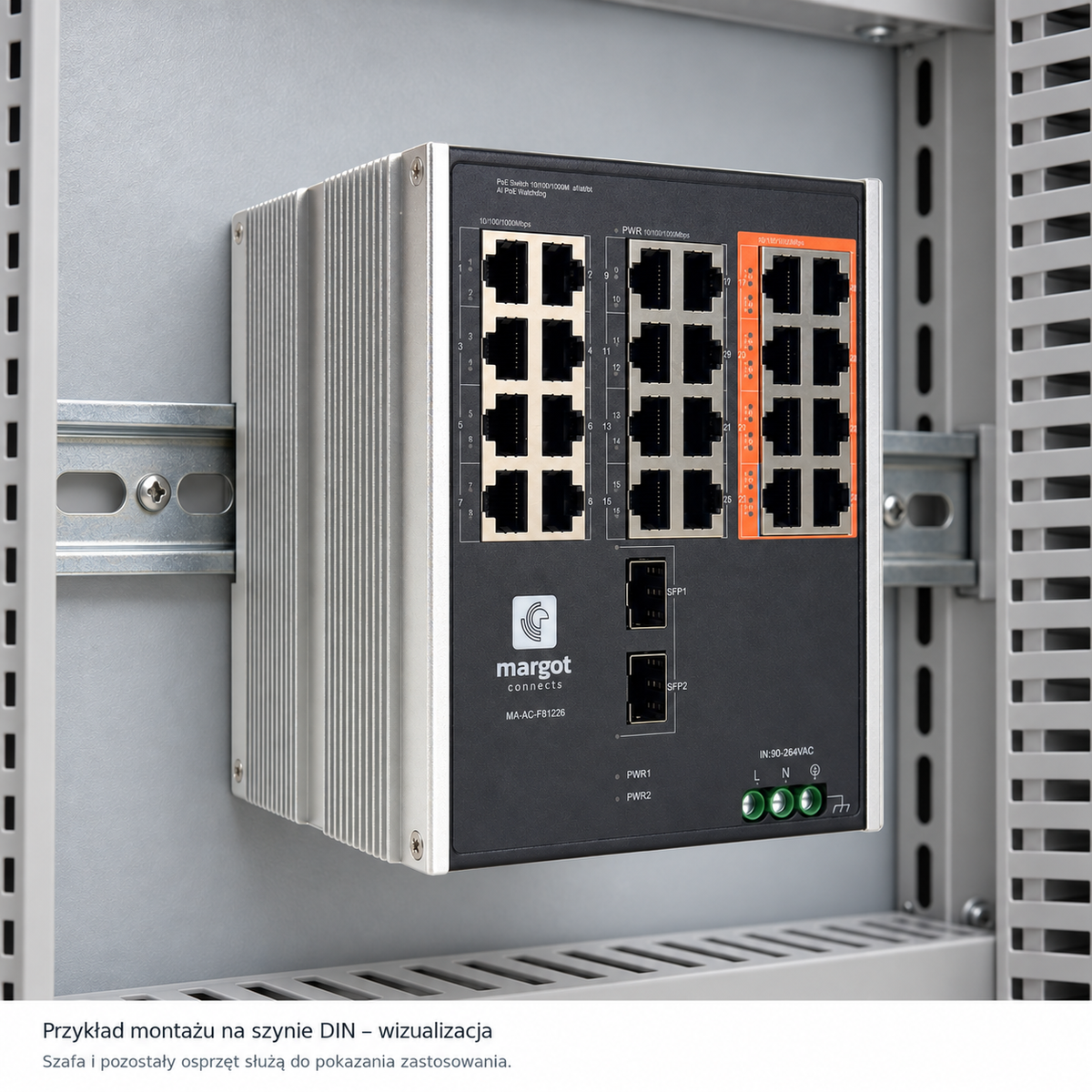

• Mounting : Standard DIN rail for quick and easy mounting.

Efficiency:

• Bandwidth: 52 Gbps.
• MAC Address Table: Supports up to 8K addresses.
• Packet Forwarding Rate: Up to 1,488,000 pps for 1000 Mbps ports.
• Network latency: Maximum 16 μs with a packet size of 64 bytes.

Standards and certificates:

• IEEE 802.3i, 802.3u, 802.3ab, 802.3x.
• IEEE 802.3af/at/bt Power over Ethernet.
• Certifications: CE Mark, FCC Part15 Class B, RoHS 2.0.

Physical specifications:

• Dimensions: 145mm x 110mm x 124mm.
• Weight: 1.45 kg.
• Cooling: Fan-assisted design for efficient heat dissipation.

Guarantee:

2 years for device.

Application:

MA-AC-F81226 is a perfect solution for industrial network systems, offering reliability, advanced PoE functions and resistance to harsh operating conditions. It is ideal for extensive installations, where stability and high network performance are key.
