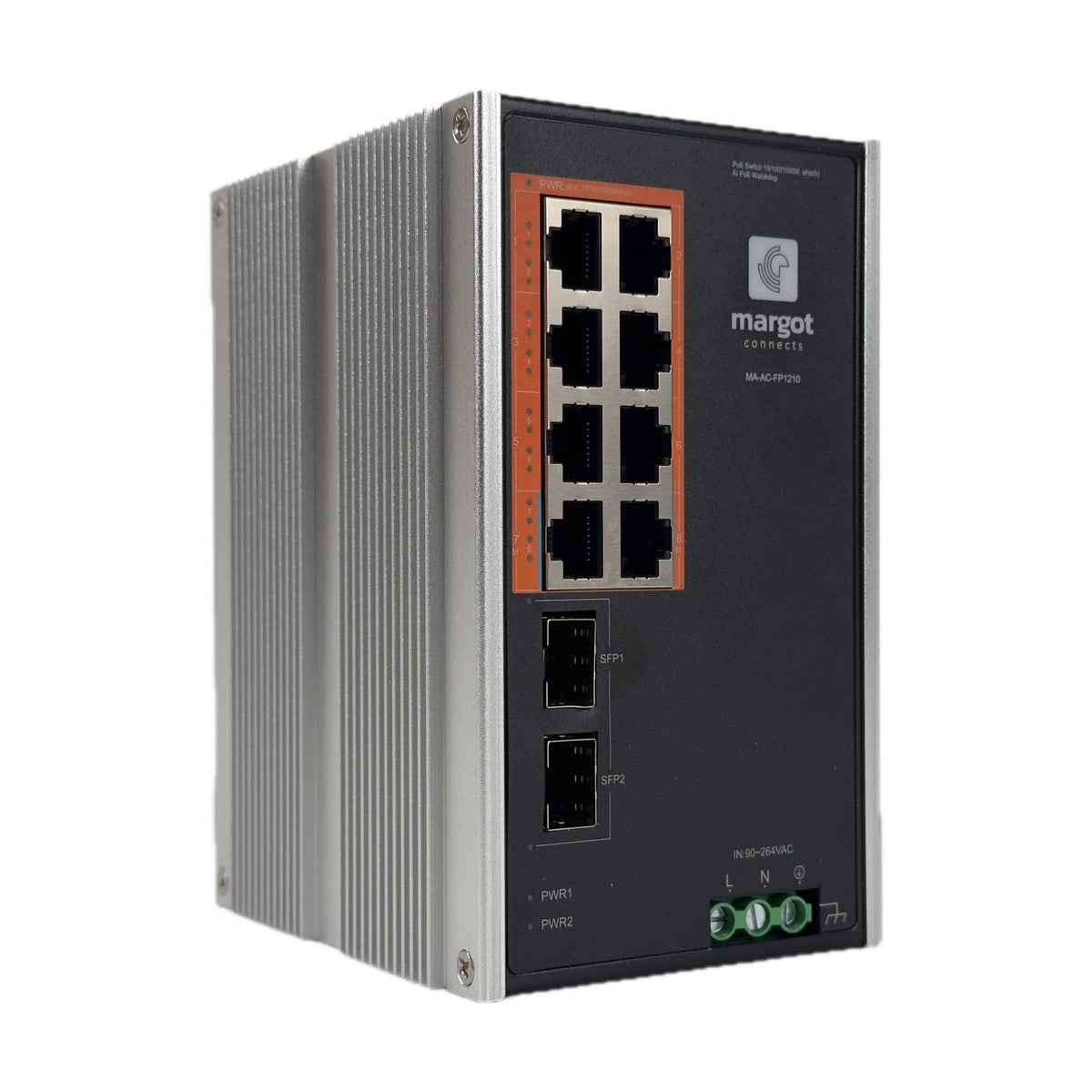

MA-AC-FP1210 | Industrial Switch 10-port PoE Gigabit DIN

Industrial PoE Switch MA-AC-FP1210 Gigabit

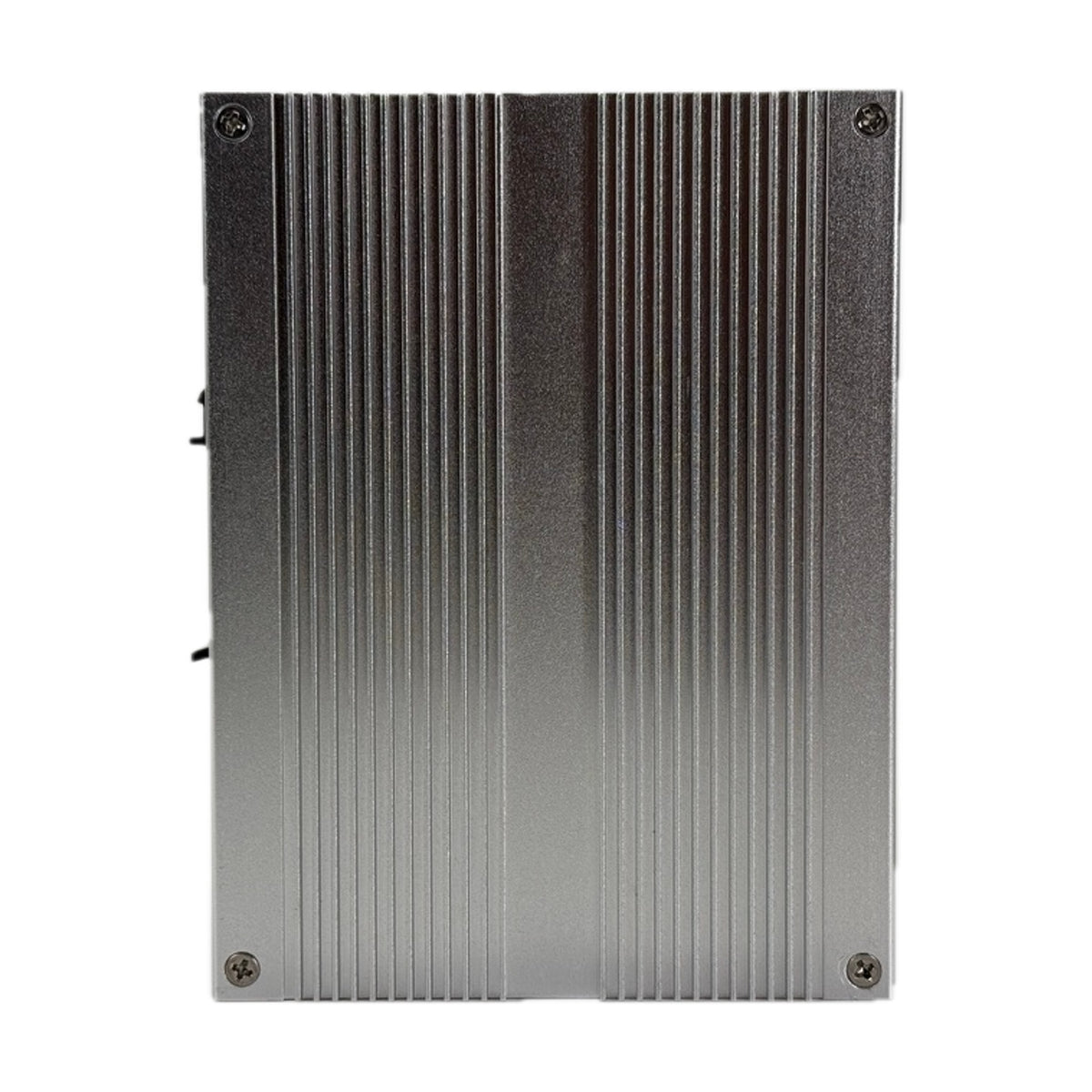

The MA-AC-FP1210 industrial switch is an efficient and reliable network device designed for use in harsh environments. With a solid aluminum housing with IP40 protection and a fanless design, it ensures stable operation and long service life.

Key Features:

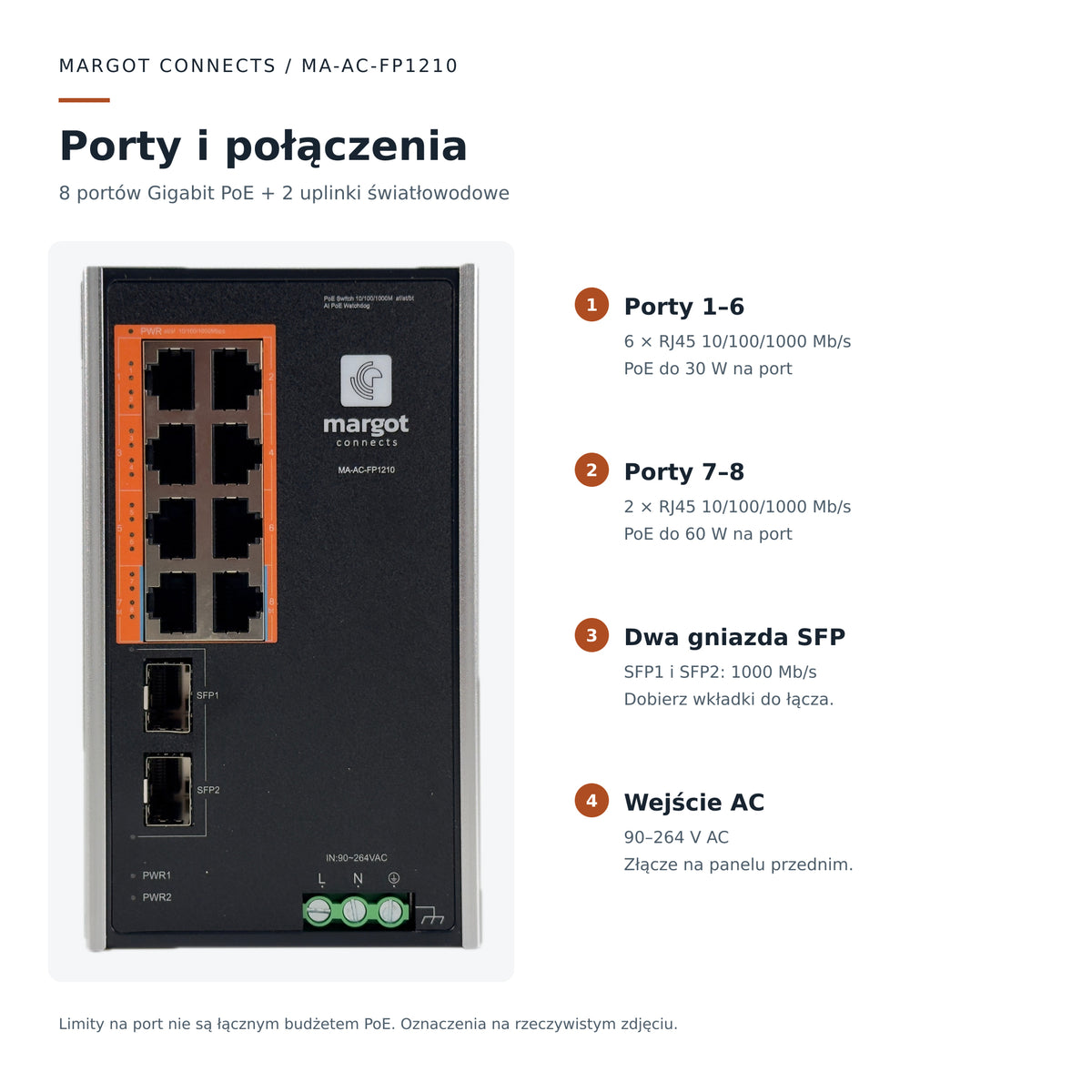

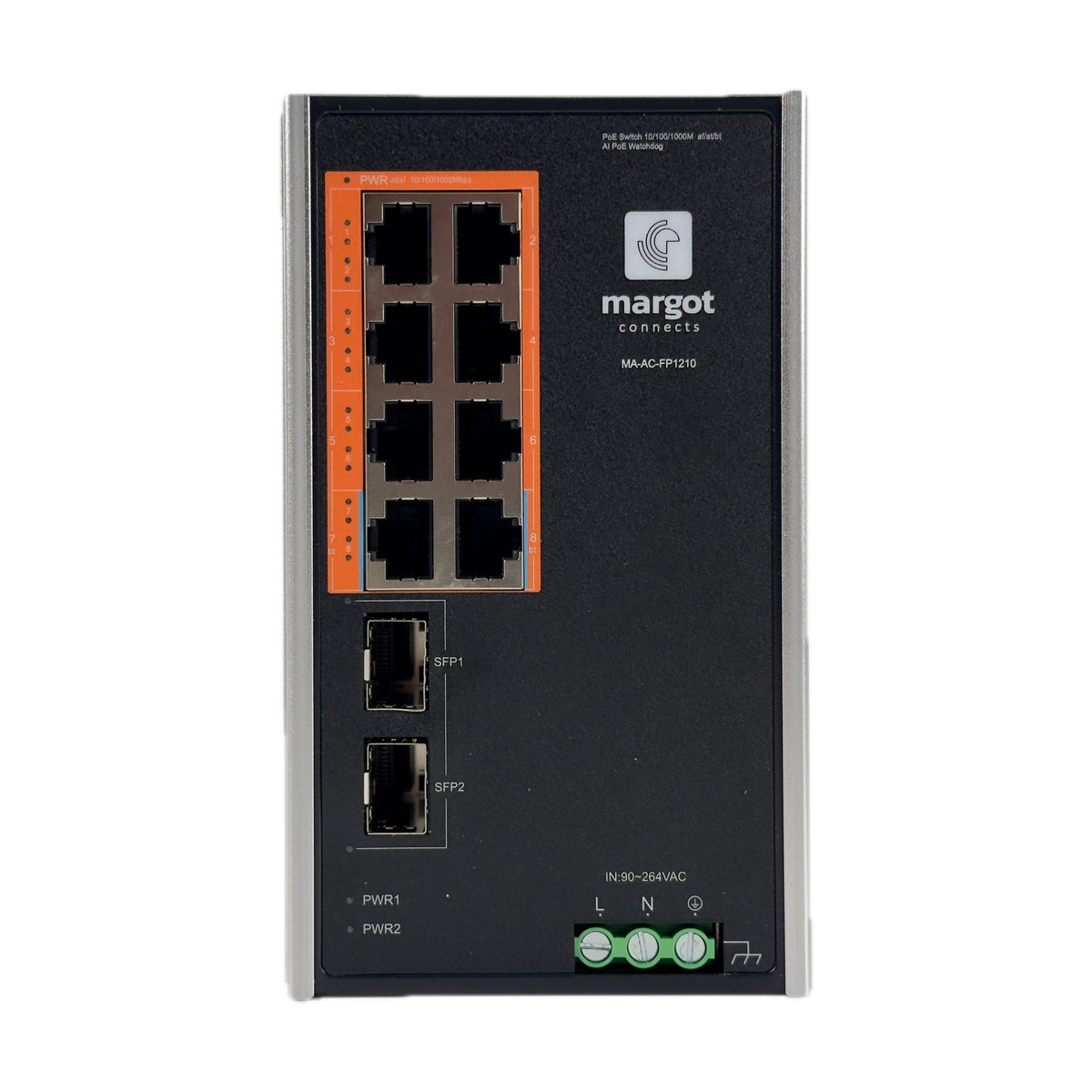

• PoE Ports : 8 RJ45 ports (10/100/1000 Mbps), including 2 high-power ports (up to 60 W).
• SFP ports : 2 SFP ports (10/100/1000 Mbps).
• Operating temperature range : -40°C to 70°C, ideal for extreme conditions.

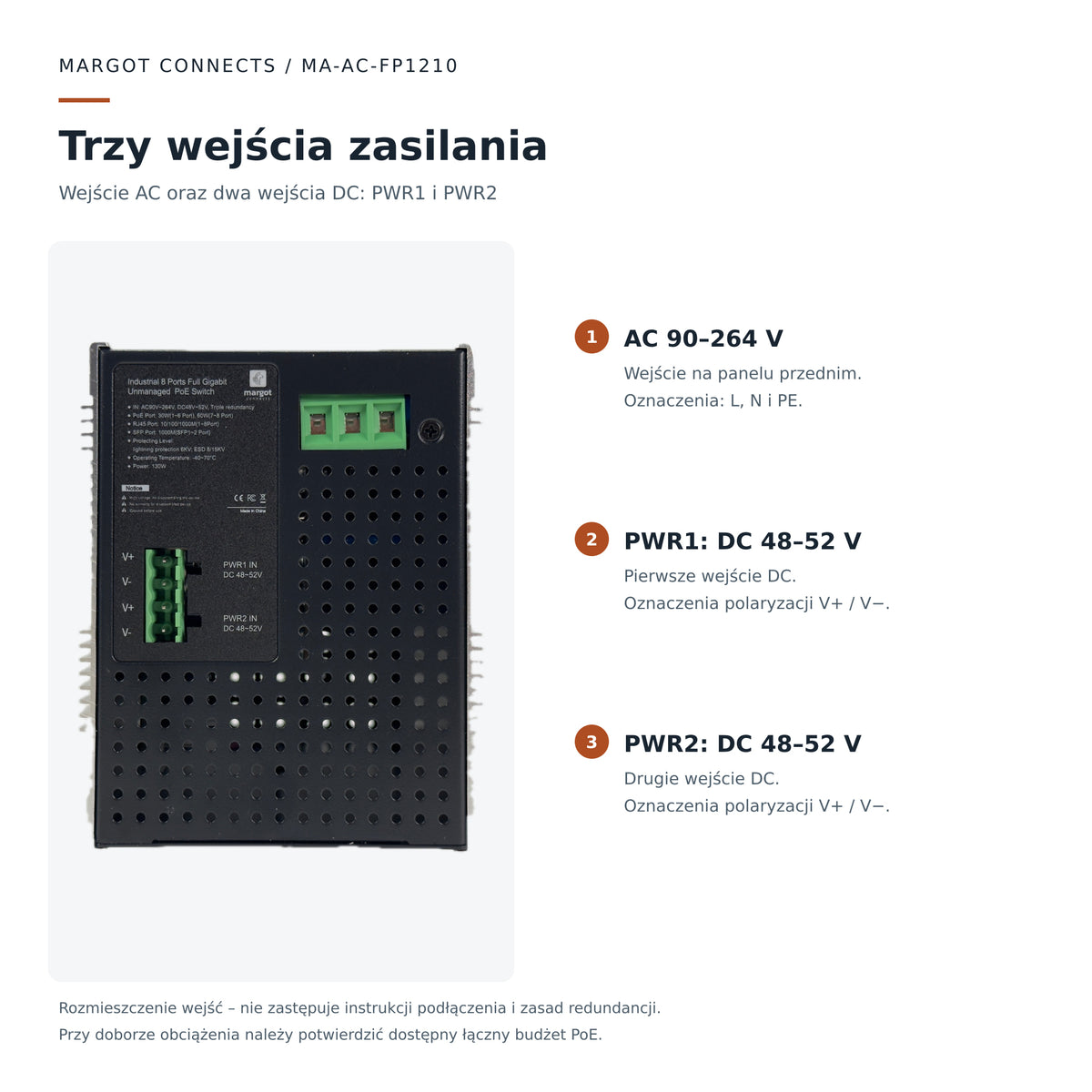

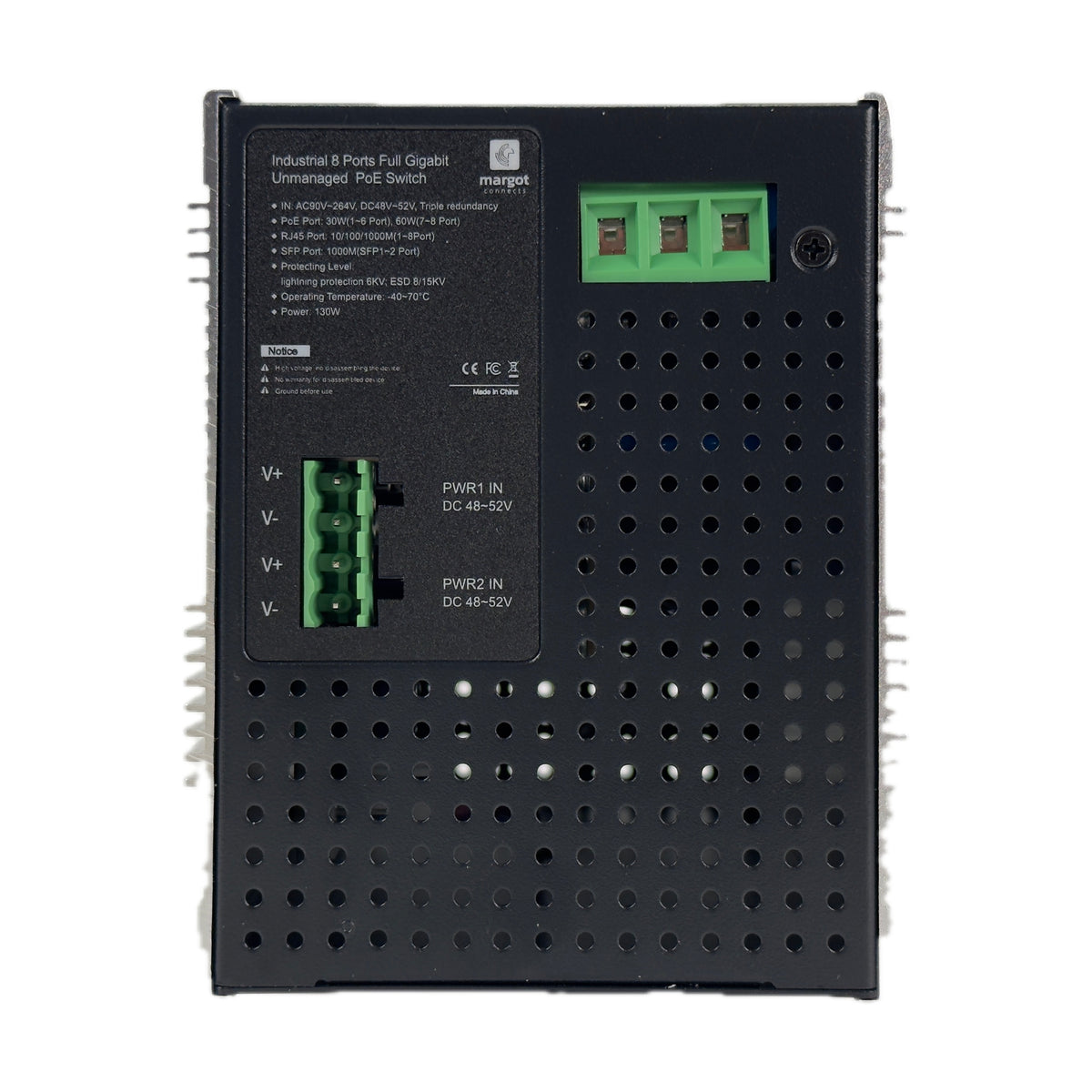

• Power : Total power 130W, support triple emergency power supply (AC 90-264V, DC 48-52V).

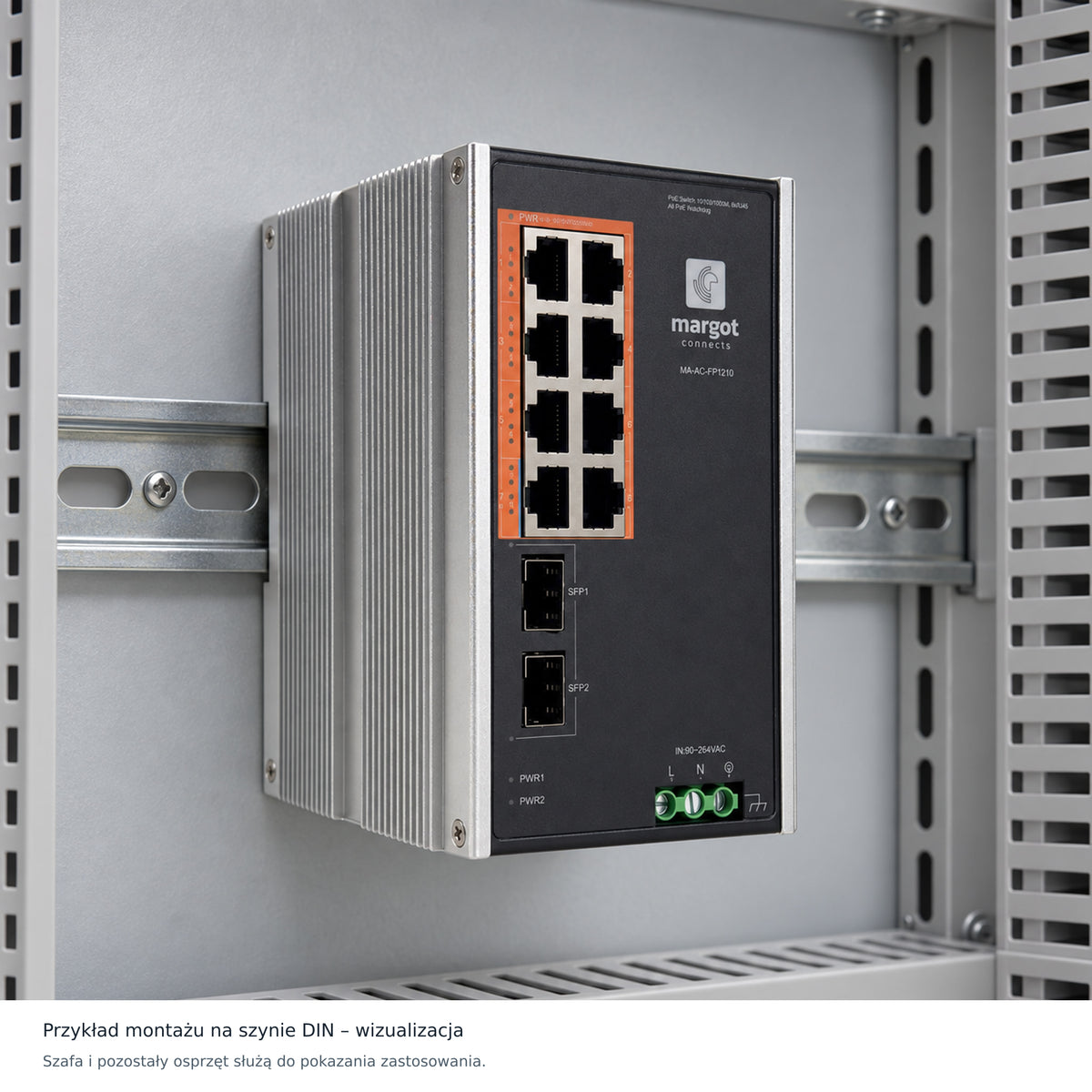

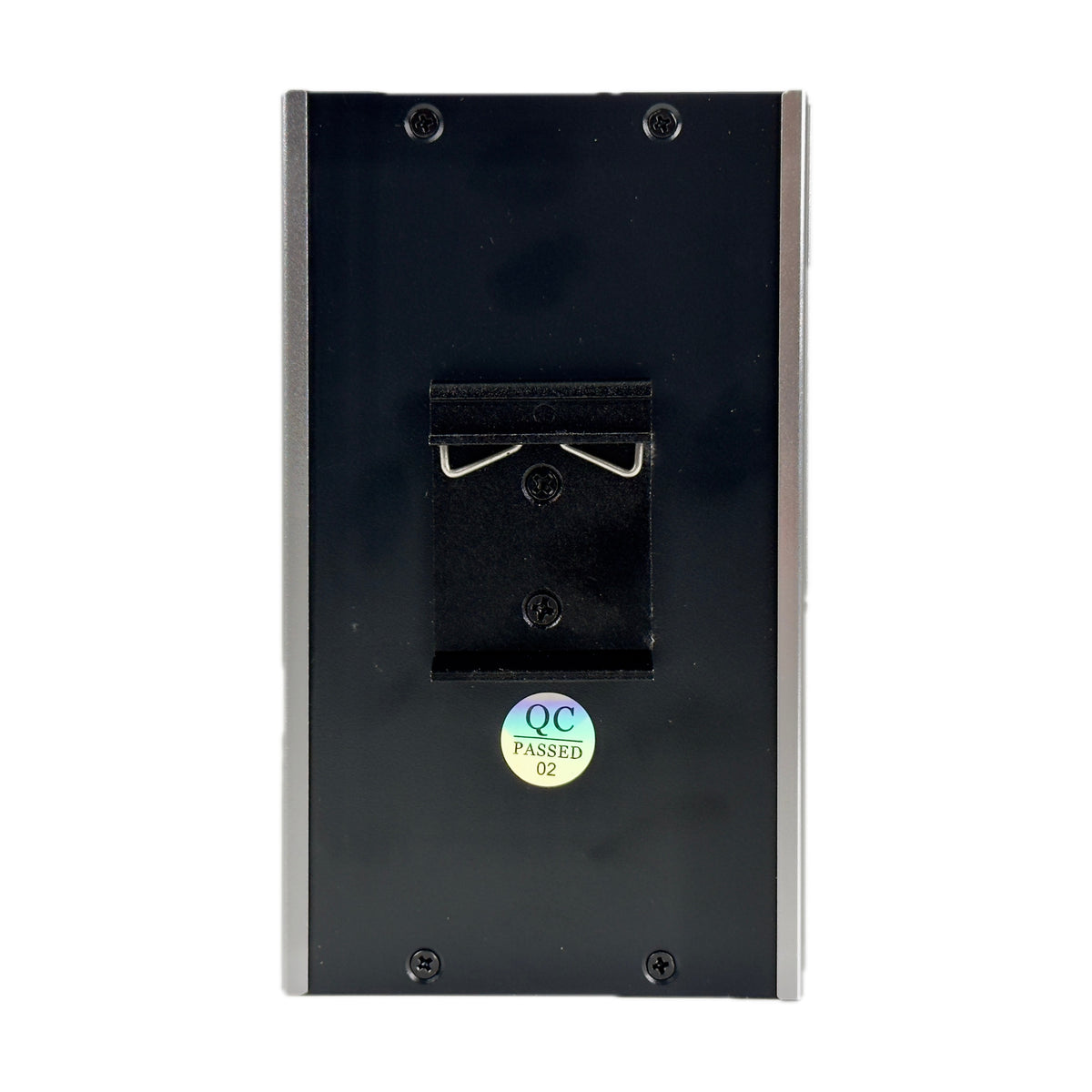

• Installation : Standard DIN rail, quick and easy installation.

Efficiency:

• Bandwidth: 20 Gbps.
• MAC Address Table: Supports up to 8K addresses.
• Packet Forwarding Rate: Up to 1488000 pps for 1000 Mbps ports.
• Network latency: Maximum 16 μs with a packet size of 64 bytes.

Standards and certificates:

• IEEE 802.3i, 802.3u, 802.3ab, 802.3x.
• IEEE 802.3af/at/bt Power over Ethernet.
• Certifications: CE Mark, FCC Part15 Class B, RoHS 2.0.

Physical specifications:

• Dimensions: 145mm x 110mm x 88mm.
• Weight: 0.9 kg.
• Cooling: Fanless design for quiet and efficient operation.

Guarantee:

2 years for device.

Application:

The MA-AC-FP1210 is a perfect solution for industrial network systems, offering PoE functionality, high performance and resistance to harsh operating conditions.
