MA-AC-GF1210 | Industrial Switch 10-port Gigabit DIN

The MA-AC-GF1210 industrial switch is an advanced network solution that combines reliability, high performance and resistance to harsh operating conditions. Thanks to its solid aluminum housing with IP40 protection and fanless design, it ensures stable and quiet operation.

Key Features:

• RJ45 ports : 8 10/100/1000 Mbps ports.
• SFP Ports : 2 SFP ports (10/100/1000 Mbps) for flexible fiber optic connections.
• Operating temperature range : -40°C to 70°C, ideal for extreme conditions.
• Power : Total power 15W, support triple emergency power supply (AC 90-264V, DC 12-52V).

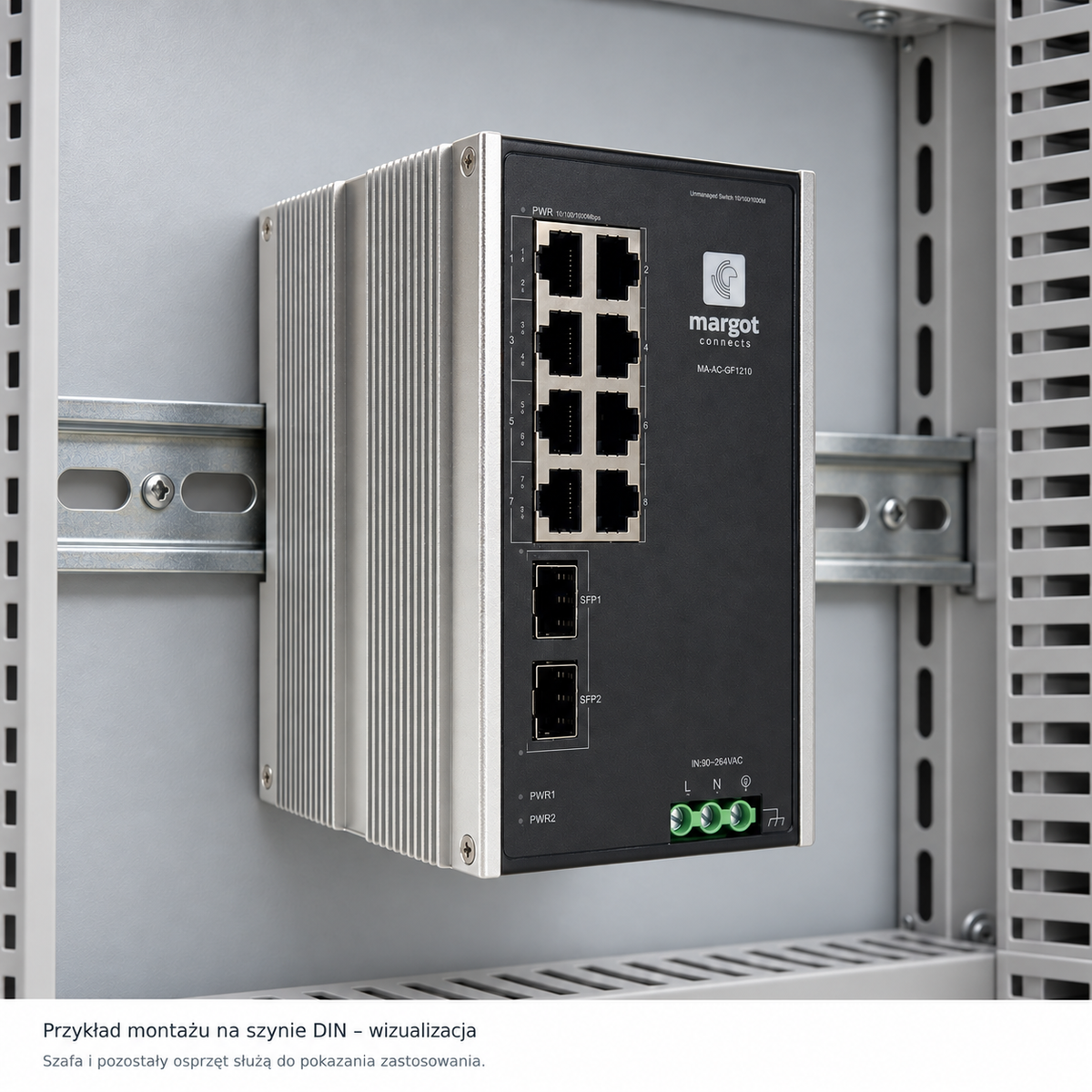

• Installation : Standard DIN rail, quick and convenient installation.

Efficiency:

• Bandwidth: 20 Gbps.
• MAC Address Table: Supports up to 8K addresses.
• Packet Forwarding Rate: Up to 1,488,000 pps for 1000 Mbps ports.
• Network latency: Maximum 16 μs with a packet size of 64 bytes.

Standards and certificates:

• IEEE 802.3i, 802.3u, 802.3ab, 802.3x Flow Control.
• Certifications: CE Mark, FCC Part15 Class B, RoHS 2.0.

Physical specifications:

• Dimensions : 145mm x 110mm x 88mm.
• Weight : 0.9 kg.
• Cooling : Fanless design for quiet and efficient operation.

Guarantee:

2 years for device.

Application:

The MA-AC-GL1210 is a perfect solution for industrial network systems, offering reliability, extensive network management capabilities and resistance to harsh conditions. It is ideal for applications such as video monitoring, industrial automation systems and extensive network installations.
