Industrial PoE Switch MA-AC-FP1218 Gigabit

The MA-AC-FP1218 industrial switch is an advanced network device that provides high performance and reliability in extreme conditions. Equipped with an aluminum housing with IP40 protection, it offers effective heat dissipation and long service life.

Key Features:

• PoE ports : 16 RJ45 ports (10/100/1000 Mbps), including 2 high-power ports (up to 60 W) - for powering e.g. MA-G6-FP51
• SFP ports : 2 SFP ports (10/100/1000 Mbps).
• Operating temperature range : From -40°C to 70°C, ideal for industrial environments.
• Power : Total power 260W, support triple emergency power supply (AC 90-264V, DC 48-52V).

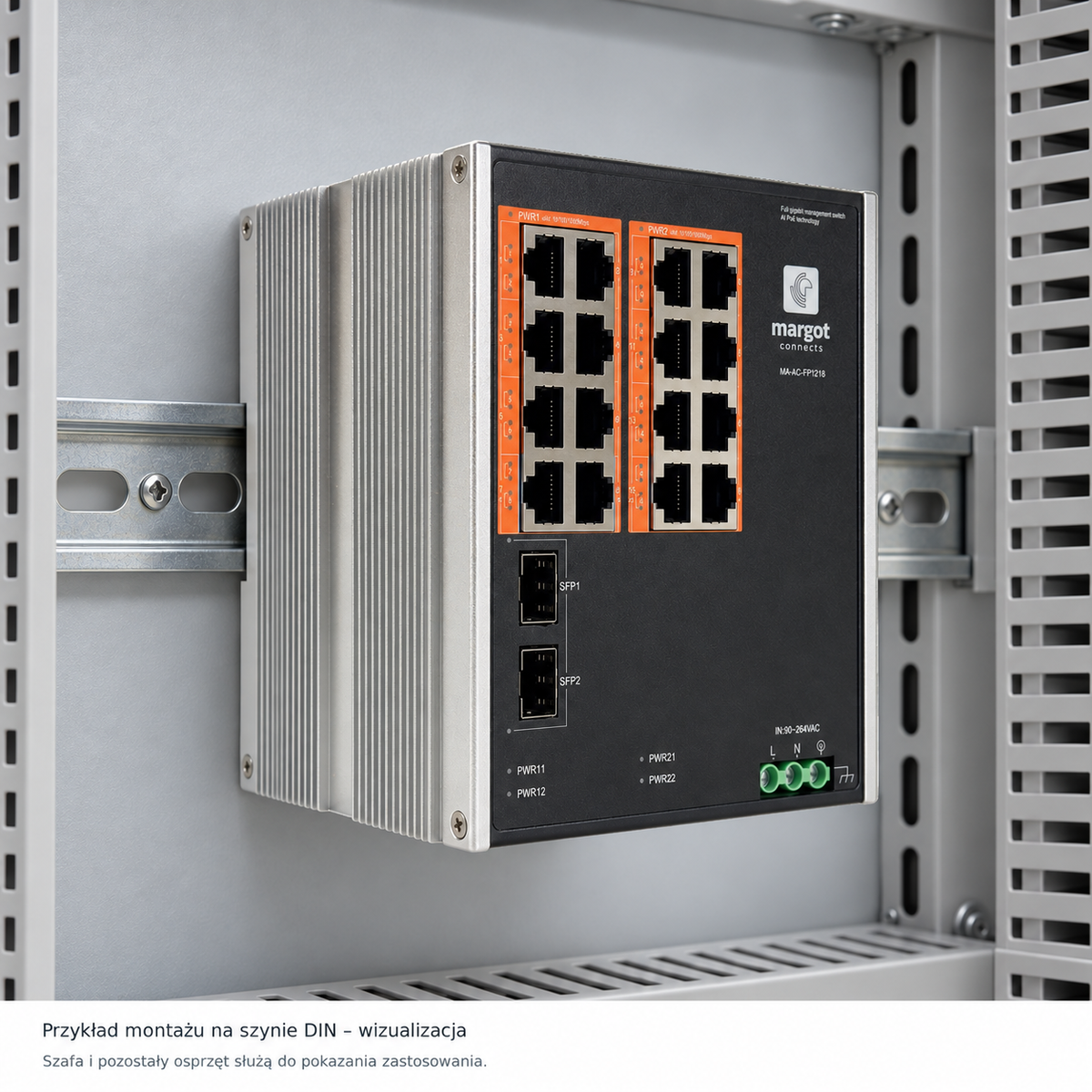

• Mounting : Standard DIN rail, allowing quick and easy mounting.

Efficiency:

• Bandwidth: 36 Gbps.
• MAC Address Table: Supports up to 8K addresses.
• Packet Forwarding Rate: Up to 1488000 pps for 1000 Mbps ports.
• Network latency: Maximum 16 μs with a packet size of 64 bytes.

Standards and certificates:

• IEEE 802.3i, 802.3u, 802.3ab, 802.3x.
• IEEE 802.3af/at/bt Power over Ethernet.
• Certifications: CE Mark, FCC Part15 Class B, RoHS 2.0.

Physical specifications:

• Dimensions: 145mm x 110mm x 124mm.
• Weight: 1.4 kg.
• Cooling: Fan-assisted system for efficient heat dissipation.

Guarantee:

2 years for device.

Application:

The MA-AC-FP1218 is an excellent solution for industrial network systems, offering advanced PoE functions, extensive network management capabilities and high reliability in demanding environments.
